TP-Link OMADA switch ES224G (24xGbE,fanless)
Popis
Parametry
Hlídací pes

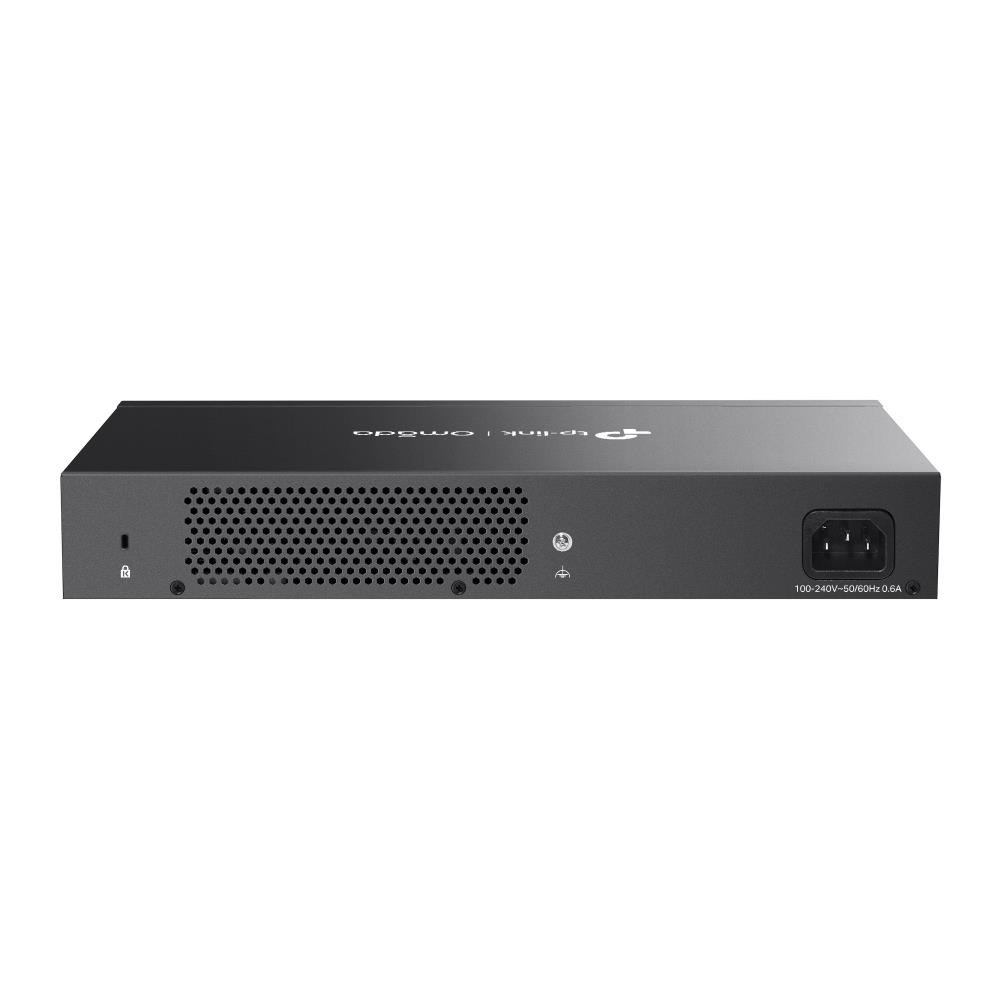

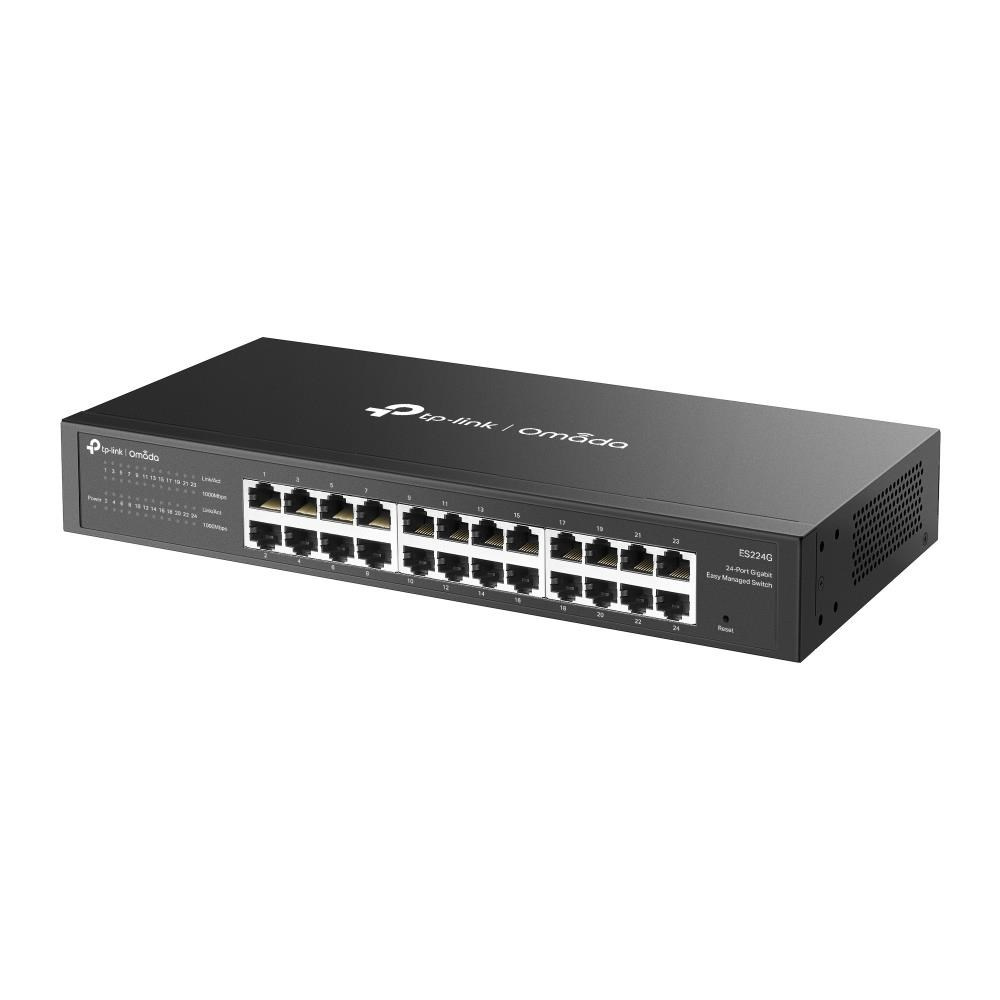

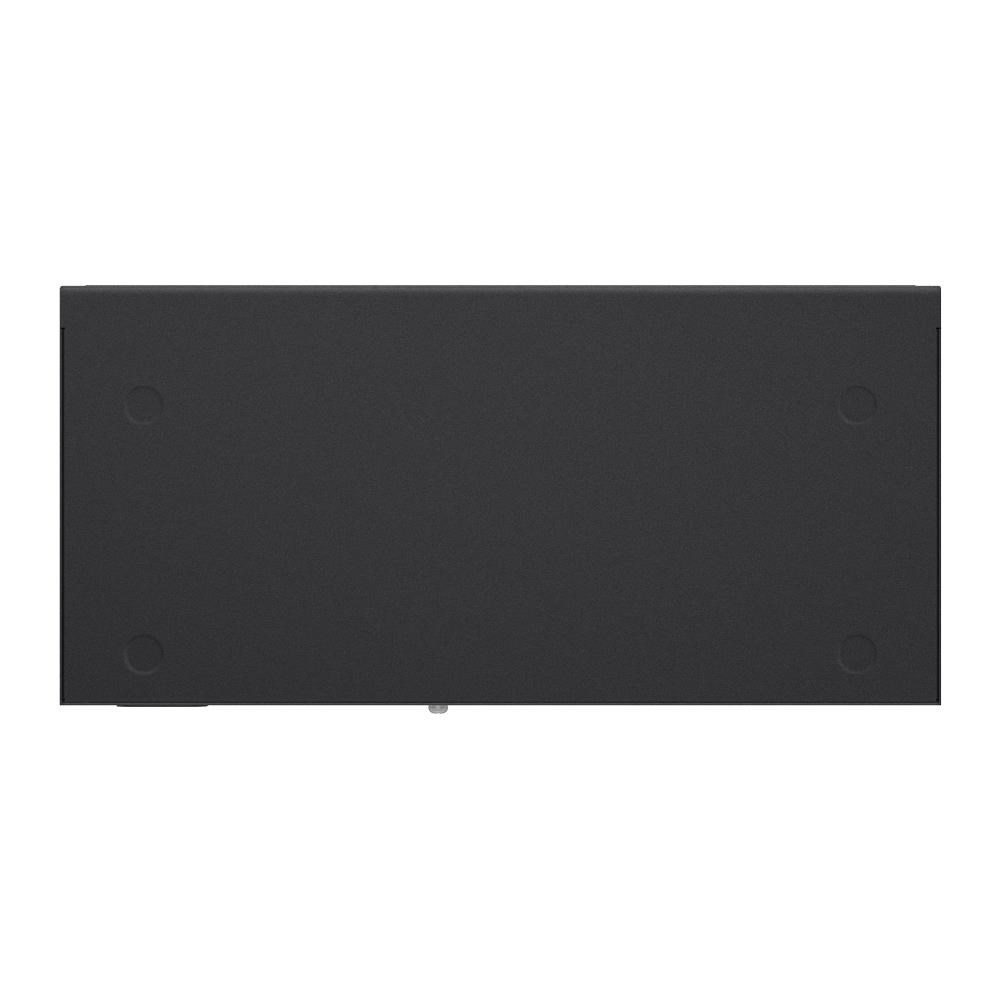

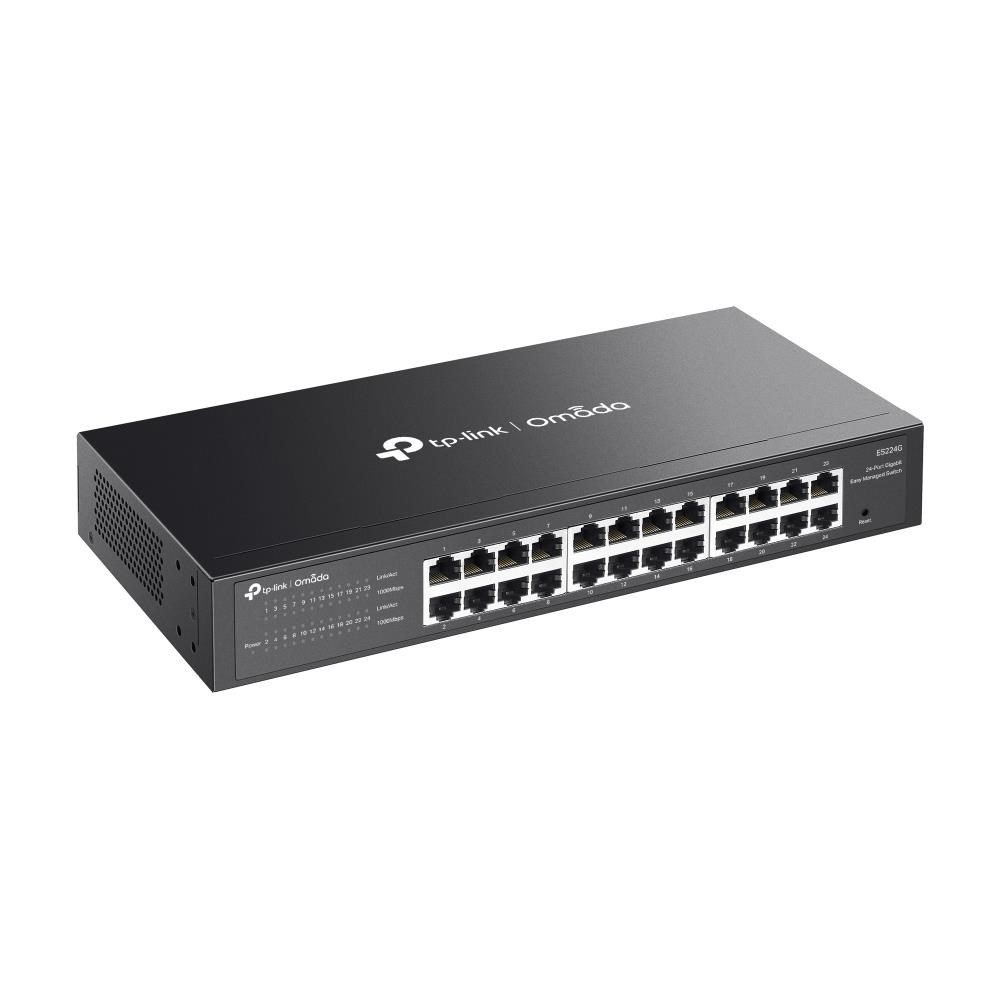

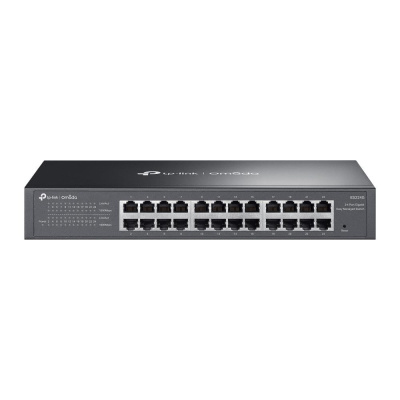

TP-Link OMADA switch ES224G
Omada 24portový gigabitový easy managed switch
- 24× 10/100/1000Mb/s RJ45 portů
- Snadné použití: Podporuje plug-and-play pro okamžité připojení a jednoduchou konfiguraci dalších funkcí
- Centralizovaná správa cloudu prostřednictvím webu nebo aplikace Omada†
- VLAN, izolace portů, test kabelů?, QoS? pro spolehlivé dohledové sítě
- Automatická prevence smyček a IGMP Snooping
- Konstrukce bez ventilátorů pro tichý provoz
- Odolný kovový kryt a konstrukce pro montáž na stůl/rack
Stránky produktu: https://www.tp-link.com/cz/business-networking/omada-switch-agile/es224g/
Technické specifikace
| HARDWARE FEATURES | |
| Interface | • 24× 10/100/1000 Mbps RJ45 Ports • Auto-Negotiation/Auto MDI/MDIX |
| Fan Quantity | Fanless |
| Installation | • Desktop • Rackmountable |
| Physical Security Lock | ? |
| Power Supply | 100-240 V~50/60 Hz |
| Dimensions ( W x D x H ) | 11.6 × 5.5 × 1.7 in (294× 140 × 44 mm) |
| Surge Protection | ±6kV |
| PERFORMANCE | |
| Switching Capacity | 48 Gbps |
| Packet Forwarding Rate | 35.7 Mpps |
| MAC Address Table | 8K |
| Packet Buffer Memory | 4 Mbit |
| Jumbo Frame | 15 KB |
| SOFTWARE FEATURES | |
| Quality of Service | • Port-based/802.1p/DSCP QoS • 8 Priority Queues • Priority Schedule Mode - WRR (Weighted Round Robin) • Queue Weight Config • Bandwidth Control - Port-Based Rating Limit • Storm Control - Multiple Control Modes (kbps/pps) - Broadcast/Multicast/Unknown-Unicast Control? |
| L2 Features | • Static Link Aggregation • Loop Prevention / Loopback Detection • Flow Control - 802.3x Flow Control • Mirroring - Port Mirroring - One-to-One - Many-to-One - Ingress/Egress/Both • Port Statistics - Port Mirror Status - Traffic Statistics • 802.1ab LLDP |
| L2 Multicast | • IGMP Snooping - IGMP v1/v2/v3 Snooping - Fast Leave |
| VLAN | • MTU VLAN • Port-Based VLAN • 802.1Q Tag VLAN - Max 32 VLAN Groups - 4K VID |
| Transmission Method | Store-And-Forward |
| Management Features | |
| Omada App | Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller. |
| Centralized Management | • Omada Cloud-Based Controller • Omada Hardware Controller • Omada Software Controller |
| Cloud Access | Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller. |
| Zero-Touch Provisioning | Yes. Requires the use of Omada Cloud-Based Controller |
| Management Features | • Web-based GUI • DHCP Client • Cable Diagnostics • Automatic Device Discovery† • Batch Configuration† • Batch Firmware Upgrading† • Unified Configuration† |
| OTHERS | |
| Certification | FCC, CE, RoHS |
| Package Content | • ES224G • Power Cord • Rubber Feet • Mounting Brackets • Screws • Installation Guide |
| Environment | • Operating Temperature: -5?~50? (23?~122?) • Storage Temperature: -40?~70? (-40?~158?) • Operating Humidity: 10%~90% non-condensing • Storage Humidity: 5%~90% non-condensing |
Technologie:
Gigabit Ethernet 1000Mbps
Management:
Web
Provedení:
Desktop
Provedení:
Rack mounted 19"
Funkce:
VLAN (virtual local area network)
Funkce:
QoS (Quality of service)
Funkce:
DHCP snooping
Funkce:
L2
Funkce:
Web management/Smart switch
Ventilátor:
Ne
Počet portů LAN:
24
Maximální počet portů:
24
Aktuální cena produktu je3301Kč
s dph
