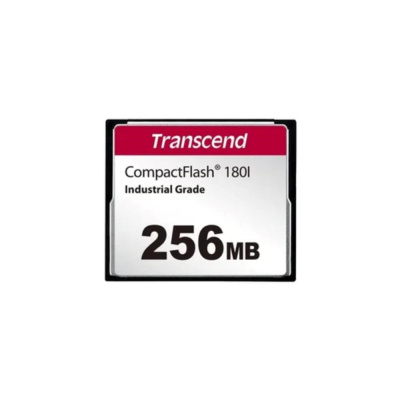

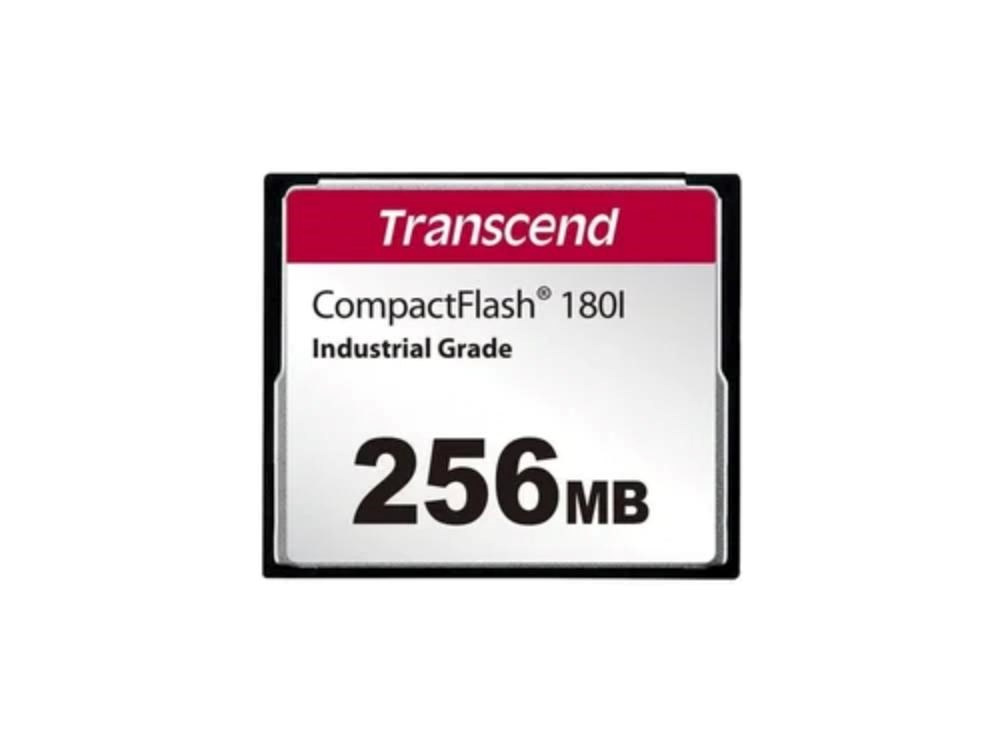

TRANSCEND CompactFlash Card CF180I, 256MB, SLC mode WD-15, Wide Temp.
Popis
Parametry
Hlídací pes
CF180 & CF180I
Transcend's SLC Mode technology is a cost-effective solution that offers performance close to that of SLC NAND flash at a more affordable price. Boasting a high-speed data transfer rate, Transcend's SLC Mode CF180 CompactFlash cards are perfect for embedded systems, medical instruments, road surveillance systems, and other industrial applications having high performance and capacity demands. Thanks to their use of Static Data Refresh technology, CF180 CF cards feature error correction capability, maintain data integrity, and have an extended lifespan.
- Based on Ultra DMA Mode 5
- True IDE Mode supported: UDMA0-5 (default), MDMA0-4, PIO0-6
- True IDE Mode: Fixed Disk (Standard)
- Operation modes supported: PC Card Memory mode, PC Card IO mode, and True IDE mode
- Built-in ECC (Error Correction Code) functionality
- Static Data Refresh
- Erase Count Monitoring
- Supports S.M.A.R.T. function to conduct health monitoring, analysis, and reporting for storage devices
- Wear-Leveling
- Security Command
TECHNICAL SPECIFICATIONS
| Dimensions | 42.8 mm x 36.4 mm x 3.3 mm (1.69" x 1.43" x 0.13") |
| Pin Count | 50 pin |
| Form Factor | Compact flash card |
| Storage | |
| Flash Type | MLC NAND flash (SLC mode) |
| Capacity | 128 MB |
| Operating Environment | |
| Operating Voltage | 3.3V±5% 5V±10% |
| Operating Temperature | Extended Temp.-25°C (-13°F) ~ 85°C (185°F) Wide Temp.-40°C (-40°F) ~ 85°C (185°F) |
| Storage Temperature | -40°C (-40°F) ~ 85°C (185°F) |
| Humidity | 0% ~ 95% |
| Shock | 1500 G, 0.5 ms, 3 axis |
| Vibration (Operating) | 20 G (peak-to-peak), 20 Hz ~ 2,000 Hz (frequency) |
| Power | |
| Power Consumption (Max.) | 0.6 watt(s) |
| Performance | |
| Read Speed (Max.) | up to 85 MB/s |
| Write Speed (Max.) | up to 70 MB/s |
| Mean Time Between Failures (MTBF) | 3,000,000 hour(s) |
| Terabytes Written (TBW) | up to 210 TBW |
| Note | Speed may vary due to host hardware, software, usage, and storage capacity. Terabytes Written (TBW) expresses the endurance under the highest capacity. |
| Warranty | |
| Certificate | CE/FCC/UKCA |
| Warranty | Three-year Limited Warranty |
.
Typ karty:
Compact Flash I
Kapacita uložiště:
0.256 GB
Aktuální cena produktu je701Kč
s dph
