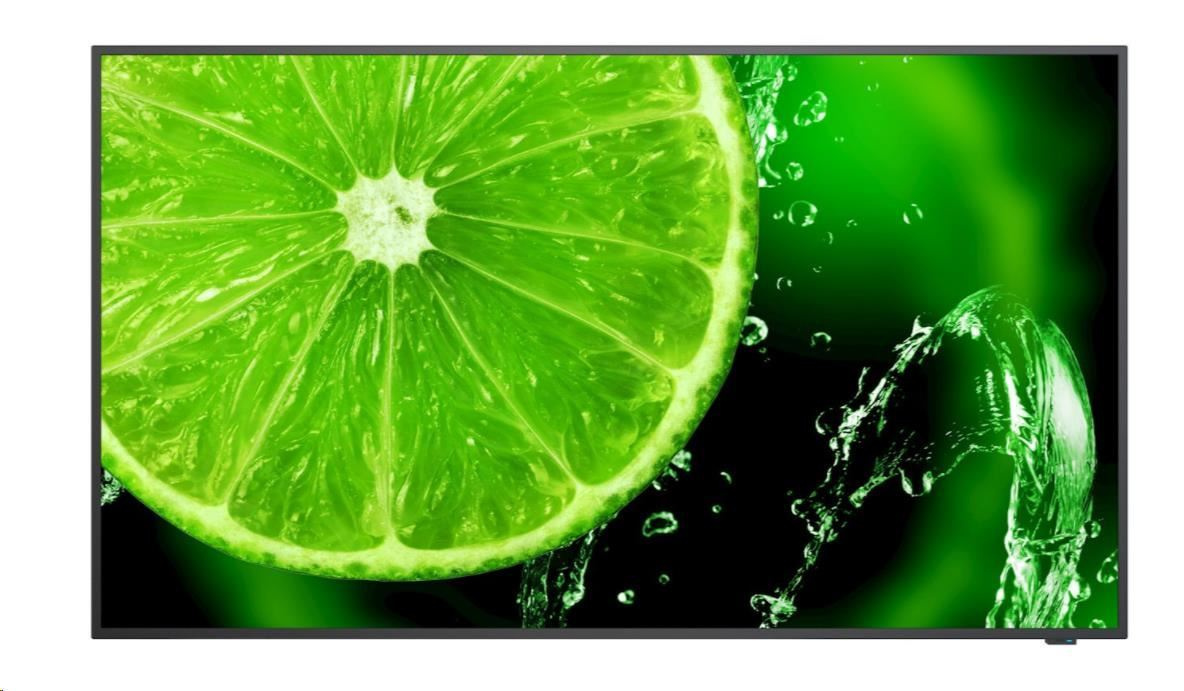

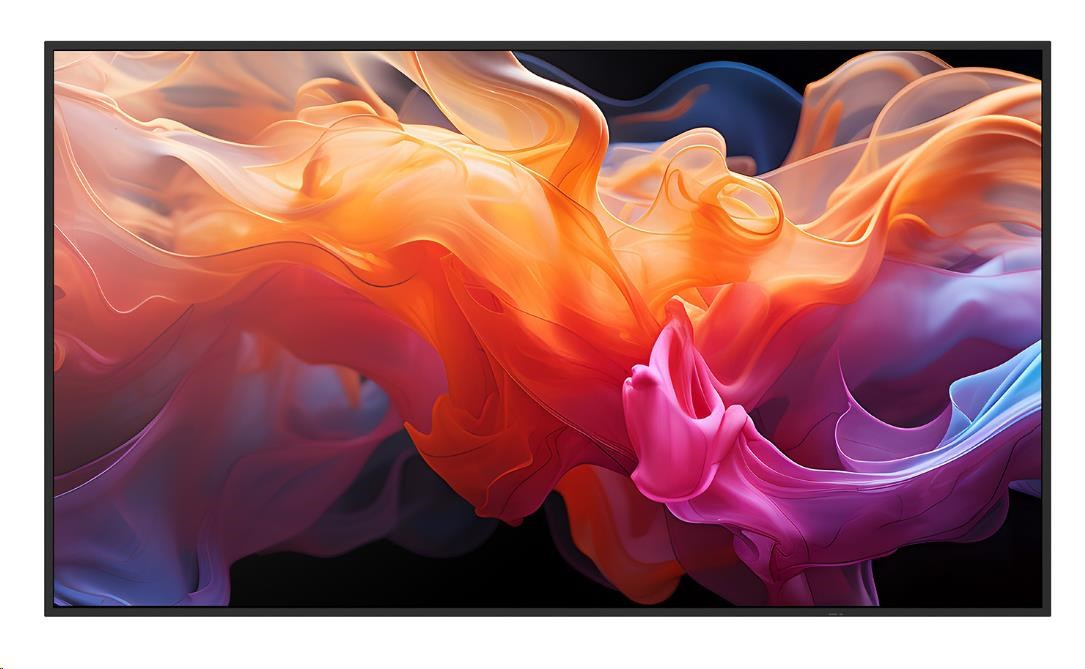

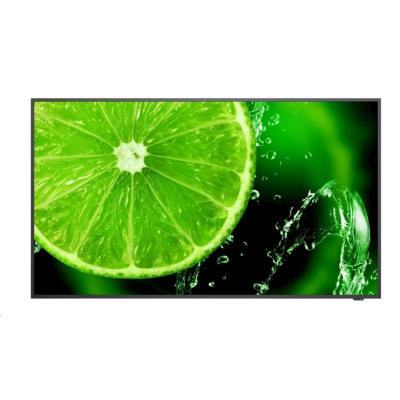

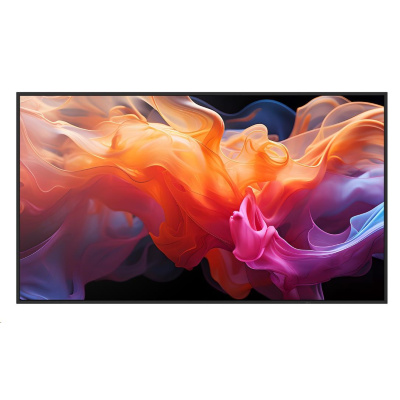

Sharp 50" MultiSync® E509, LED, 3840x2160, 350nit, 4000:1, 8ms, 16/7, VGA, HDMI, LAN, RS232, USB-C
Product Information
Product Name Sharp MultiSync® E509
Product Group LCD 50" Essential Large Format Display
Order Code 60006182
Display
Panel Technology VA with Direct LED backlights
Active Screen Area (W
x H) [mm]
1,096 x 616
Screen Size [inch/cm] 50 / 125.7
Aspect Ratio 16:9
Pixel Pitch [mm] 0.285
Brightness [cd/m˛] 350
Contrast Ratio (typ.) 4000:1
Viewing Angle [°] 178 horizontal / 178 vertical (typ. at contrast ratio 10:1)
Colour Depth [bn] 1.07 (8bit + FRC)
Response Time (typ.)
[ms]
8
Panel Refresh Rate [Hz] 60
Haze Level [%] Pro (25)
Supported Orientation Landscape; Portrait
Resolution
Native Resolution 3840 x 2160
Supported Resolutions 1024 x 768;
1280 x 1024;
1280 x 720;
1280 x 800;
1280 x 960;
1360 x 768;
1400 x 1050;
1440 x 900;
1680 x 1050;
1920 x 1080;
1920 x 1200;
3840 x 2160;
4096 x 2160;
640 x 480;
720 x 400;
720 x 480;
720 x 576
Synchronisation Rate
Horizontal Frequency
[kHz]
31.5 - 135
Vertical Frequency [Hz] 24 - 75
Connectivity
Input Video Digital 1 x USB-C (with HDCP, 15 W); 2 x HDMI
Input Audio Digital 1x USB-C; 2 x HDMI
Input Control 1 x LAN 100Mbit; 1 x RS232
Input Data 1 x USB 2.0 (MediaPlayer); 1 x USB Typ-C (5V/3A, power for external
devices)
Output Audio Analogue 1 x 3,5 mm jack
Remote Control Remote Control IR; RS-232C (9-pin D-sub) Input
Electrical
Power Consumption
[W]
99 shipping
Power Savings Mode
[W]
< 0.5; < 2 (Networked Standby)
Power Supply 100-240 V AC; 50/60 Hz; internal
Environmental Conditions
Operating Temperature
[°C]
+0 to +40
Operating Humidity [%] 20 to 80
Storage Humidity [%] 10 to 80
Storage Temperature
[°C]
-20 to +60
Mechanical
Dimensions (W x H x D)
[mm]
1,120 x 641 x 59.9
Weight [kg] 9.2
Bezel Width [mm] 10.8
VESA Mounting [mm] 200 x 200 (FDMI); 4 holes; M6
Packaging Dimensions
(W x H x D) [mm]
1,253 x 761 x 128
Packaging Weight [kg] 13
MediaPlayer
Supported File Storage
/ File System
USB 2.0 / FAT16, FAT32
Supported Image
Formats
JPG (baseline, progressive, RGB, CMYK); max. resolution 15360 x 8640
Supported Video
Formats
MPG (MPEG1/2/4, max res 1080p@30Hz); MP4 (MPEG2/4, H.263, H.264,
HEVC/H.265, max res 3840x2160@60Hz); TS (MPEG2, H.264, HEVC/H.265,
max res 3840x2160@60Hz); audio: LPCM, MP3, AAC; WMV (video H.264,
Windows Media Video 9, max res 1080p@30Hz, audio WMA 9, WMA 10
Pro)
Supported Audio
Formats
MP3 (MP3); max. bit-rate 320 kBit/s
Available Options
Accessories Feet (ST-43M); Trolley (PD04 Tipster); USB-C cable (USB-C 5M, USB-C 7M);
Wall mount (PDW S 32-65 L, PDW S 32-65 P)
Regulatory
Safety and Ergonomics CE; Energy Star 8; FCC Class B; RCM; UKCA; UL/C-UL or CSA; VCCI
Green Features
Energy Efficiency Energy consumption: 90 kWh/1000 h; Energy efficiency class: G; LED
backlight
Ecological Standards EnergyStar 8.0
Additional Features
Special Characteristics CEC Support; HDMI ARC; NaViSet Administrator 2 - free download;
Powered USB-Port; Scheduler; USB Media Player
Colour Versions Black Front Bezel, Black Back Cabinet
Audio Integrated Speakers (10 W + 10 W)
Shipping Content 2x AAA batteries; Cable Clamps; Display; Power Cable; Remote Control;
Setup Manual
Warranty 3 years warranty incl. backlight
Operating Hours 16/7
Remote Management NaViSet Administrator 2
.
