Manhattan HDMI opakovač, 4K HDMI Repeater, aktivní, do 40m, černá
Popis
Parametry
Hlídací pes

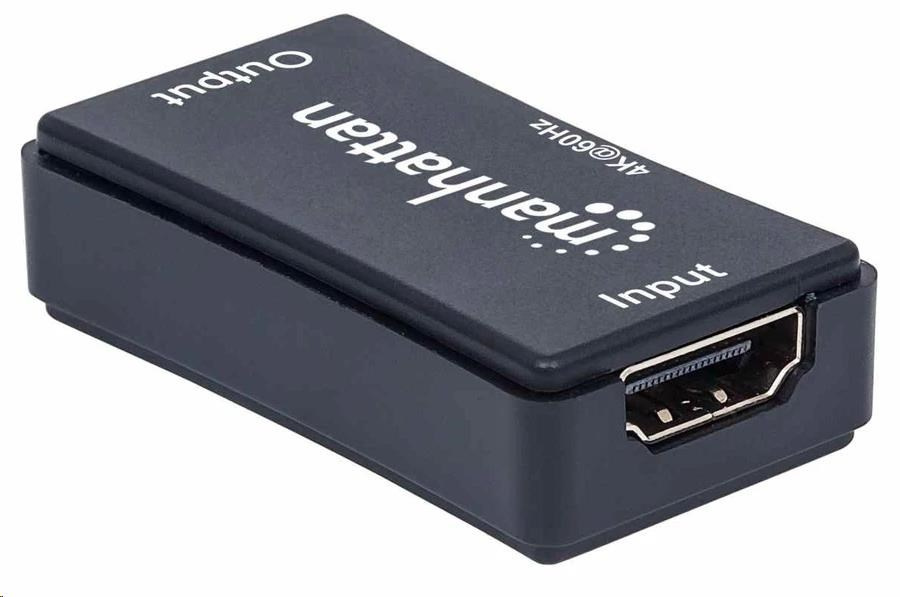

4K HDMI Repeater
The Manhattan 4K HDMI Repeater extends the range of an HDMI signal by decoding and regenerating it at 4K@60Hz resolution from virtually any HDMI source (PlayStation, Xbox, Blu-ray player, satellite receiver, digital recorder, etc.) using existing HDMI cables. Designed for plug-and-play installation, the Repeater boosts weak signals to reduce or eliminate picture noise, degradation or sparkles on an HD display or projector. An additional USB port is included to boost power to video sources that need to travel longer distances.
- Boosts high-definition signal over HDMI cables for 4K performance up to 40 m (131 ft.)
- Delivers a sharp, clear signal from a Playstation, Xbox, Blu-ray player, set-top box, satellite receiver or other video source
- Supports 4K@60Hz resolution as well as HDR YUV 4:4:4, 3D HD video and Deep Color (24-bits/pixel)
- Fully HDCP compliant to protect high-definition content transmission and ensure quality reception
- Supports video amplifier bandwidth up to 6.0 Gbps (for 4K@60Hz)
- Plug and play — requires no installation, configuration or external power
- Included Micro-USB cable can be connected to supply sufficient power to a video-source port at a further distance
- Gold-plated contacts
- Three-year warranty
TECHNICAL SPECIFICATIONS
| Standards and Certifications | HDCP 2.2 DVI 1.0 CE FCC RoHS2 |
| Connections | One HDMI female (input) - Cable length: 5 – 25 m (15 – 80 ft.) One HDMI female (output) - Cable length: 1 – 15 m (3 – 50 ft.) One USB Micro-B (input), additional power |
| Video Resolutions | DTV/HDTV/UHDTV: 480i/480p/576i/576p/720p/1080i/1080p/4K@30Hz/4K@60Hz 1080p-capable up to 50 m 4K@30Hz-capable up to 40 m 4K@60Hz-capable up to 25 m |
| Package Contents | 4K HDMI Repeater USB Micro-B Cable Quick Install Guide |
| Signal Input/Output | |
| Input video signal | 0.5 – 1.0 V p-p |
| Input DDC signal | 5 V p-p (TTL) |
| Maximum single-link range | 4096x2160, 4K@60Hz |
| Output video | HDCP 2.2, DVI 1.0 |
| Frequency | 6.0 Gbps / 600 MHz |
| Physical | |
| Dimensions | 50 x 28 x 14 mm (2 x 1 x 0.6 in.) |
| Weight | 0.02 kg (0.04 lbs.) without cable |
| Cable length | 0.7 m (28 in.) |
| Operating Environment | |
| Operation Temperature | 0 – 40°C (32 – 104°F) |
| Storage Temperature | -20 – 60°C (-4 – 140°F) |
| Humidity (noncondensing) | 0 – 96% |
.
Specifikace kabelu / redukce:
Ostatní
Input:
HDMI
Output:
HDMI
Aktuální cena produktu je527Kč
s dph
