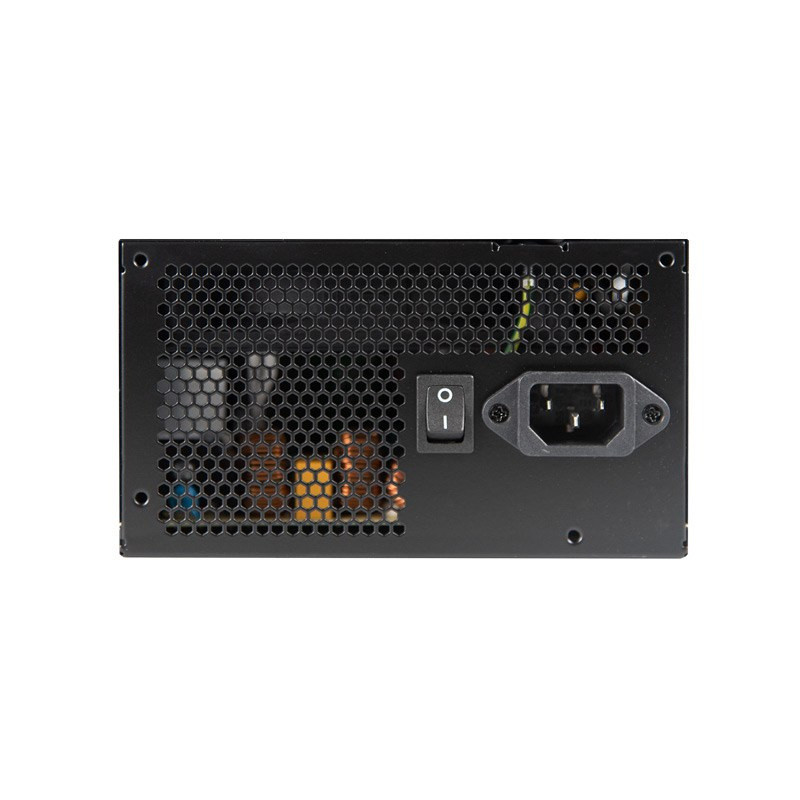

CHIEFTEC zdroj Task, TPS-700S, 700W, Full Range, 80+ Bronze, retail
Popis
Parametry
Hlídací pes
TPS-700S
- 80PLUS® Bronze certified efficiency
- 650mm long cables for maximum case compatibility
- All modern protection and safety features included
The CHIEFTEC Task Series PSU’s are true to their name, and take on any task they are required for without any trouble.
With certified 80PLUS® Bronze efficiency and all modern protection and safety features, the PSU can be trusted to deliver power efficiently and reliably. With cable lengths extended to 650mm for motherboard and CPU, these power supplies will also serve excellently for builds inside larger cases.
- 650mm long cables for maximum case compatibility
- All modern protection and safety features included
The CHIEFTEC Task Series PSU’s are true to their name, and take on any task they are required for without any trouble.
With certified 80PLUS® Bronze efficiency and all modern protection and safety features, the PSU can be trusted to deliver power efficiently and reliably. With cable lengths extended to 650mm for motherboard and CPU, these power supplies will also serve excellently for builds inside larger cases.
SPECIFICATIONS:
Performance
.Model | Task 700W |
Article no. | TPS-700S |
EAN code | 0753263076502 |
Weight (without/with package) | 1.74 kg / 2.15 kg |
AC Input | 100-240V / 10.0A |
Frequency | 47-63Hz |
+5V | 17A |
+3,3V | 19A |
+5V & +3,3V combined | 110W |
+12V 1 | 648W / 54A |
+12V 2 | - |
+12V 1 & +12V 2 combined | - |
P.F. | >0,9 |
-12V | 0,3A / 3,6W |
+5VsB | 2,5A / 12,5W |
Maximum Power | 700W |
Connectors
24PIN ATX | 1 |
8 PIN EPS (4+4) | 1 |
8 PIN PCIe (6+2) | 2 |
SATA | 6 |
MOLEX | 3 |
Cable length
24PIN ATX | 650 |
8 PIN EPS (4+4) | 650 |
8 PIN PCIe (6+2) | 500/150 |
MOLEX | 500/150/150 |
SATA | 500/150/150 |
SATA | 500/150/150 |
Features
Specification | ATX 12V 2.3 |
Form factor | PS II |
Efficiency | 80 PLUS® Bronze |
Dimension (DxWxH) | 140 mm x 150 mm x 87 mm |
PFC | Active PFC (0.9) |
Fan | 120mm silent fan |
Security |
|
Warranty | 24 Months |
Formát zdroje:
ATX
Konektory:
PCIe 8-pin
Konektory:
Molex
Konektory:
SATA 15-pin
Konektory:
PCIe 6-pin
Konektory:
FDD
Konektory pro základní desku:
EPS 8-pin
Konektory pro základní desku:
ATX 24-pin
Efektivita zdroje:
80 Plus Bronze
Modulární kabeláž:
Ne
Výkon zdroje (W):
700
Aktuální cena produktu je1454Kč
s dph
