ASUS MB Sc LGA1700 PRIME B760M-A D4, Intel B760, 4xDDR4, 1xDP, 2xHDMI, mATX
Popis
Parametry
Hlídací pes
PRIME B760M-A D4
TECHNICAL SPECIFICATIONS
| CPU | Intel® Socket LGA1700 for 13th Gen Intel® Core™ Processors & 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors* |
| Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0** | |
| * Refer to www.asus.com for CPU support list. | |
| ** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types. | |
| Chipset | Intel® B760 Chipset |
| Memory | 4 x DIMM, Max. 128GB, DDR4 5333(OC)/5066(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory* |
| Dual Channel Memory Architecture | |
| Supports Intel® Extreme Memory Profile (XMP) | |
| OptiMem II | |
| * Supported memory types, data rate(Speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list. | |
| Graphics | 1 x DisplayPort** |
| 2 x HDMI® ports*** | |
| * Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates. | |
| ** Supports max. 4K@60Hz as specified in DisplayPort 1.4. | |
| ***Supports 4K@60Hz as specified in HDMI® 2.1. | |
| Expansion Slots | Intel® 13th & 12th Gen Processors |
| 1 x PCIe 4.0 x16 slot | |
| Intel® B760 Chipset | |
| 1 x PCIe 4.0 x16 slot (supports x4 mode) | |
| 1 x PCIe 4.0 x16 slot (supports x1 mode) | |
| Note: To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals. | |
| Storage | Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports* |
| Intel® 13th & 12th Gen Processors | |
| M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) | |
| Intel® B760 Chipset | |
| M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) | |
| 4 x SATA 6Gb/s ports | |
| * Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10. | |
| Ethernet | 1 x Realtek 2.5Gb Ethernet |
| USB | Rear USB (Total 6 ports) |
| 2 x USB 3.2 Gen 2 ports (2 x Type-A ) | |
| 4 x USB 2.0 ports (4 x Type-A) | |
| Front USB (Total 10 ports) | |
| 2 x USB 3.2 Gen 1 headers support 4 additional USB 3.2 Gen 1 ports | |
| 1 x USB 3.2 Gen 1 connector (supports USB Type-C®) | |
| 2 x USB 2.0 headers support 4 additional USB 2.0 ports | |
| 1 x USB 2.0 header supports 1 additional USB 2.0 port | |
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback |
| Audio Features | |
| - Audio Shielding | |
| - Premium audio capacitors | |
| - Dedicated audio PCB layers | |
| * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output. | |

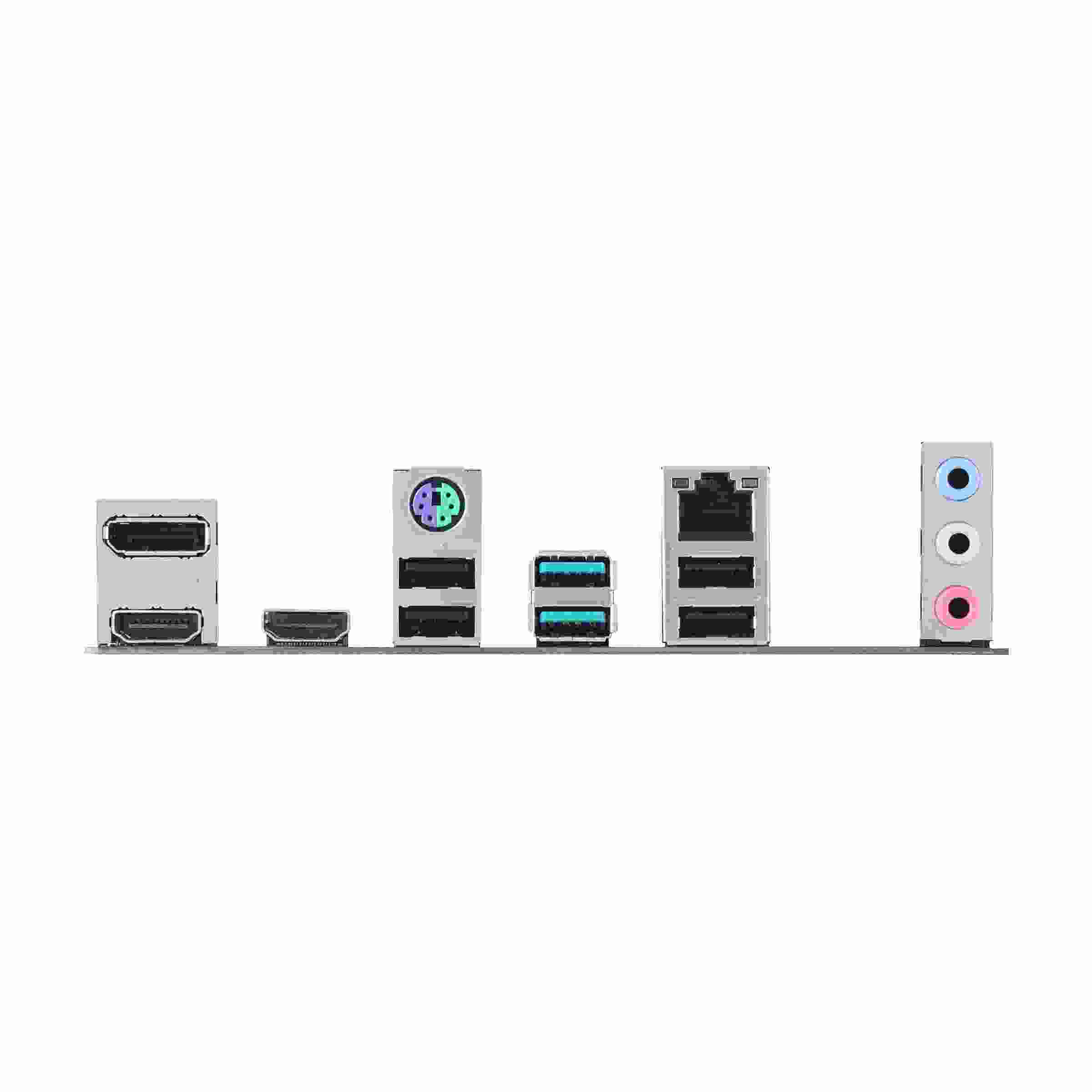

| Back Panel I/O Ports | 2 x USB 3.2 Gen 2 ports (2 x Type-A ) |
| 4 x USB 2.0 ports (4 x Type-A) | |
| 1 x DisplayPort | |
| 2 x HDMI® ports | |
| 1 x Realtek 2.5Gb Ethernet port | |
| 3 x Audio jacks | |
| 1 x PS/2 Keyboard/Mouse combo port | |
| Internal I/O Connectors | Fan and Cooling related |
| 1 x 4-pin CPU Fan header | |
| 1 x 4-pin CPU OPT Fan header | |
| 2 x 4-pin Chassis Fan headers | |
| Power related | |
| 1 x 24-pin Main Power connector | |
| 1 x 8-pin +12V Power connector | |
| Storage related | |
| 2 x M.2 slots (Key M) | |
| 4 x SATA 6Gb/s ports | |
| USB | |
| 2 x USB 3.2 Gen 1 headers support 4 additional USB 3.2 Gen 1 ports | |
| 1 x USB 3.2 Gen 1 connector (supports USB Type-C®) | |
| 2 x USB 2.0 headers support 4 additional USB 2.0 ports | |
| 1 x USB 2.0 header supports 1 additional USB 2.0 port | |
| Miscellaneous | |
| 3 x Addressable Gen 2 headers | |
| 1 x Aura RGB header | |
| 1 x Clear CMOS header | |
| 1 x COM Port header | |
| 1 x Front Panel Audio header (AAFP) | |
| 1 x LPT header | |
| 1 x S/PDIF Out header | |
| 1 x SPI TPM header (14-1pin) | |
| 1 x 20-3 pin System Panel header with Chassis intrude function | |
| Special Features | ASUS 5X PROTECTION III |
| - DIGI+ VRM | |
| - LANGuard | |
| - Overvoltage Protection | |
| - SafeSlot Core+ | |
| - Stainless-Steel Back I/O | |
| ASUS Q-Design | |
| - Q-DIMM | |
| - Q-LED Core | |
| - Q-Slot | |
| ASUS Thermal Solution | |
| - M.2 heatsink | |
| - VRM heatsink design | |
| ASUS EZ DIY | |
| - ProCool | |
| Aura Sync | |
| - Aura RGB header | |
| - Addressable Gen 2 RGB headers | |
| Software Features | ASUS Exclusive Software |
| Armoury Crate | |
| - Aura Creator | |
| - Aura Sync | |
| - Fan Xpert 2+ | |
| - Power Saving | |
| AI Suite 3 | |
| - Digi+ VRM | |
| - PC Cleaner | |
| ASUS CPU-Z | |
| Norton Deluxe (60 Days Free Trial) | |
| WinRAR | |
| UEFI BIOS | |
| ASUS EZ DIY | |
| - ASUS CrashFree BIOS 3 | |
| - ASUS EZ Flash 3 | |
| - ASUS UEFI BIOS EZ Mode | |
| BIOS | 128 Mb Flash ROM, UEFI AMI BIOS |
| Manageability | WOL by PME, PXE |
| Accessories | Cables |
| 2 x SATA 6Gb/s cables | |
| Miscellaneous | |
| 1 x I/O Shield | |
| 1 x M.2 Rubber Package | |
| 1 x M.2 SSD screw package | |
| Documentation | |
| 1 x User guide | |
| Operating System | Windows® 11, Windows® 10 64-bit |
| Form Factor | mATX Form Factor |
| 9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm ) |
Technologie paměti RAM:
DDR4
Socket (patice):
Socket 1700
Chipset:
Intel B760
COM port:
Ano
LPT port:
Ano
Formát základní desky:
micro ATX
3.5mm Jack:
Ano
Pro procesory:
Intel
Počet paměťových slotů:
4
DisplayPort:
1
TPM:
Ano
M.2 slot:
2
SATA 3:
4
VGA:
0
DVI:
0
HDMI:
2
DisplayPort Type-C:
0
Aktuální cena produktu je4300Kč
