ASRock MB Sc AM4 A520M-ITX/AC, AMD A520, 2xDDR4, HDMI, DP

Name: ASRock MB Sc AM4 A520M-ITX/AC, AMD A520, 2xDDR4, HDMI, DP
Brand: ASRock
SKU: 380620
Price: 2857 CZK
Availability: OutOfStock

Přidat do oblíbených

Dotaz na prodejce >

Přidat produkt k porovnání >Přidat produkt k oblíbeným >

Popis

Parametry

Hlídací pes

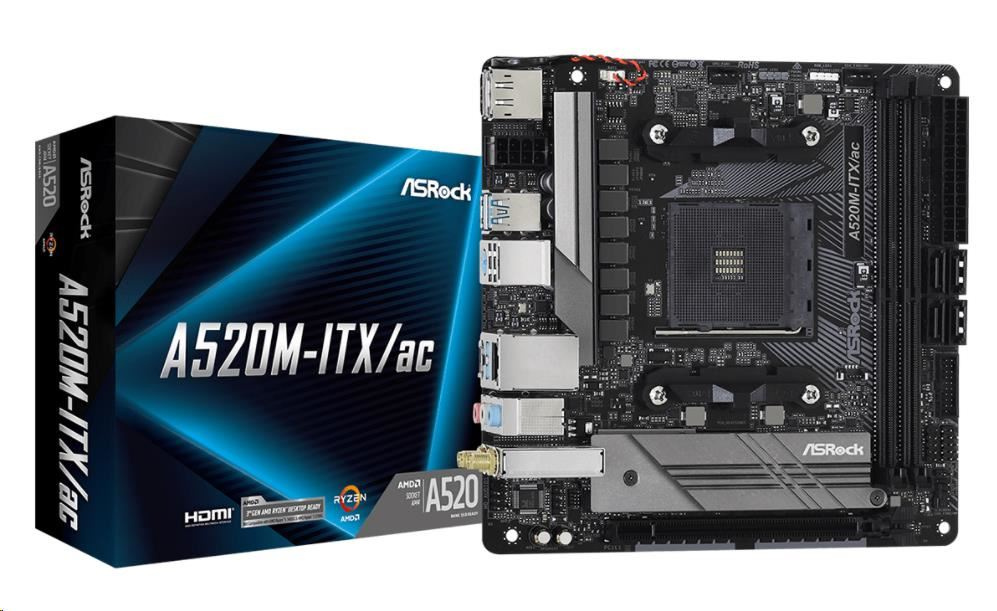

A520M-ITX/ac

Supports 3rd Gen AMD AM4 Ryzen™ / Future AMD Ryzen™ Processors (3000 and 4000 Series Processors)
Supports DDR4 4733+ (OC)
1 x PCIe 3.0 x16
Graphics Output: DisplayPort, HDMI
7.1 CH HD Audio (Realtek ALC887 Audio Codec)
4 x SATA3, 1 x Ultra M.2 (PCIe Gen3 x4 & SATA3)
6 x USB 3.2 Gen1 (2 Front, 3 Rear Type-A, 1 x Rear Type-C)
Realtek Gigabit LAN
Intel® 802.11ac WiFi + BT 4.2

TECHNICAL SPECIFICATIONS

Unique Feature	ASRock Super Alloy - Premium 60A Power Choke - 50A Dr.MOS - Sapphire Black PCB - High Density Glass Fabric PCB Intel® 802.11ac WiFi ASRock Full Coverage M.2 Heatsink ASRock Ultra M.2 (PCIe Gen3x4) ASRock Full Spike Protection (for all USB, Audio, LAN Ports) ASRock Live Update & APP Shop
CPU	- Supports 3rd Gen AMD AM4 Ryzen™ / future AMD Ryzen™ Processors (3000 and 4000 Series Processors)* - Digi Power design - 8 Power Phase design *Not compatible with AMD Ryzen™ 5 3400G and Ryzen™ 3 3200G.
Chipset	- AMD A520
Memory	- Dual Channel DDR4 Memory Technology - 2 x DDR4 DIMM Slots - AMD Ryzen series CPUs (Matisse) support DDR4 4600+(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory* - AMD Ryzen series APUs (Renoir) support DDR4 4733+(OC) / 4666(OC) / 4600(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory* - Max. capacity of system memory: 64GB** - Supports Extreme Memory Profile (XMP) memory modules - 15µ Gold Contact in DIMM Slots
Graphics	- Integrated AMD Radeon™ Vega Series Graphics in Ryzen Series APU* - DirectX 12, Pixel Shader 5.0 - Shared memory default 2GB. Max Shared memory supports up to 16GB.** - Dual graphics output: support HDMI and DisplayPort 1.4 ports by independent display controllers - Supports HDMI 2.1 with max. resolution up to 4K x 2K (4096x2160) @ 60Hz - Supports DisplayPort 1.4 Input with max. resolution up to 5K (5120x2880)@120Hz - Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 2.1 Port (Compliant HDMI monitor is required) - Supports HDR (High Dynamic Range) with HDMI 2.1 - Supports HDCP 2.3 with HDMI 2.1 and DisplayPort 1.4 Ports - Supports 4K Ultra HD (UHD) playback with HDMI 2.1 and DisplayPort 1.4 Ports - Supports Microsoft® PlayReady Actual support may vary by CPU *The Max shared memory 16GB requires 32GB system memory installed.
Slots	- 1 x PCI Express 3.0 x16 Slot (PCIE1: x16 mode)* - 1 x Vertical M.2 Socket (Key E) with the bundled WiFi-802.11ac module (on the rear I/O) *AMD Ryzen series CPUs (Matisse) supports PCIe riser cards to extend x8/x8 slots Supports NVMe SSD as boot disks
Storage	- 4 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1 and RAID 10), NCQ, AHCI and Hot Plug - 1 x Ultra M.2 Socket (M2_1), supports M Key type 2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)* *Supports NVMe SSD as boot disks Supports ASRock U.2 Kit
LAN	- PCIE x1 Gigabit LAN 10/100/1000 Mb/s - Realtek RTL8111H - Supports Wake-On-LAN - Supports Lightning/ESD Protection - Supports Energy Efficient Ethernet 802.3az - Supports PXE
Wireless LAN	- Intel® 802.11ac WiFi Module - Supports IEEE 802.11a/b/g/n/ac - Supports Dual-Band (2.4/5 GHz) - Supports high speed wireless connections up to 433Mbps - Supports Bluetooth 4.2 + High speed class II
Connector	- 1 x RGB LED Header* - 1 x Addressable LED Header - 1 x CPU Fan Connector (4-pin)* - 2 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)**** - 1 x 24 pin ATX Power Connector - 1 x 8 pin 12V Power Connector - 1 x Front Panel Audio Connector - 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection) - 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection) Supports in total up to 12V/3A, 36W LED Strip Supports in total up to 5V/3A, 15W LED Strip The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power. **The Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power. CHA_FAN1/WP and CHA_FAN2/WP can auto detect if 3-pin or 4-pin fan is in use.
Audio	- 7.1 CH HD Audio (Realtek ALC887 Audio Codec) - Supports Surge Protection

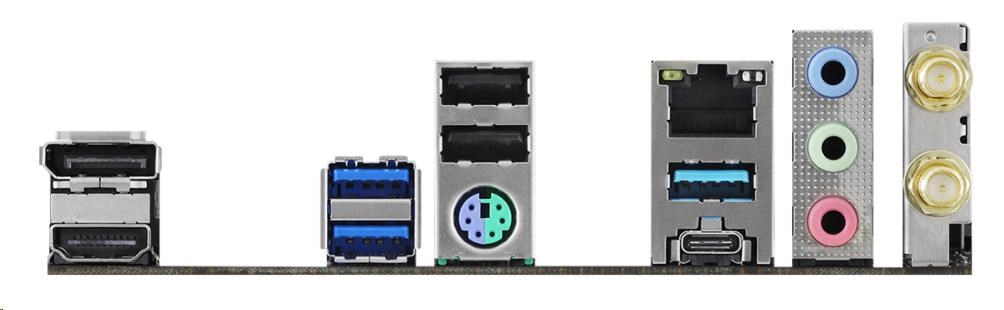

Rear panel I/O	- 2 x Antenna Ports - 1 x PS/2 Mouse/Keyboard Port - 1 x HDMI Port - 1 x DisplayPort 1.4 - 2 x USB 2.0 Ports (Supports ESD Protection) - 3 x USB 3.2 Gen1 Type-A Ports (Supports ESD Protection) - 1 x USB 3.2 Gen1 Type-C Port (Supports ESD Protection) - 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) - HD Audio Jacks: Line in / Front Speaker / Microphone
Software and UEFI	Software - ASRock Motherboard Utility (A-Tuning) - ASRock Polychrome SYNC - ASRock XFast LAN UEFI - ASRock Full HD UEFI - ASRock Instant Flash *These utilities can be downloaded from ASRock Live Update & APP Shop.
Support CD	- Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar
BIOS	- 128Mb AMI UEFI Legal BIOS with GUI support - Supports "Plug and Play" - ACPI 5.1 compliance wake up events - Supports jumperfree - SMBIOS 2.3 support - CPU, CPU VDDCR_SOC, DRAM, VPPM, +1.8VSB, VDDP Voltage Multi-adjustment
Accessories	- Quick Installation Guide, Support CD, I/O Shield - 2 x SATA Data Cables - 2 x ASRock WiFi 2.4/5 GHz Antennas
Hardware Monitor	- Temperature Sensing: CPU, Chassis/Water Pump Fans - Fan Tachometer: CPU, Chassis/Water Pump Fans - Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, Chassis/Water Pump Fans - Fan Multi-Speed Control: CPU, Chassis/Water Pump Fans - Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore
Operating System	- Microsoft® Windows® 10 64-bit
Form Factor	- Mini-ITX Form Factor: 6.7-in x 6.7-in, 17.0 cm x 17.0 cm - Solid Capacitor design
Certifications	- FCC, CE - ErP/EuP ready (ErP/EuP ready power supply is required)

Technologie paměti RAM: DDR4

Socket (patice): Socket AM4

Chipset: AMD

Chipset: AMD A520

PCI Express x16: 1

Podpora RAID: 1

Podpora RAID: 10

COM port: Ne

LPT port: Ne

Formát základní desky: Mini-ITX

3.5mm Jack: Ano

Bezdrátové připojení: Wi-Fi

Bezdrátové připojení: WiFi + Bluetooth

Pro procesory: AMD

Počet paměťových slotů: 2

DisplayPort: 1

TPM: Ne

USB 2: 4

USB 3: 6

PCI: 0

M.2 slot: 1

SATA 3: 4

VGA: 0

DVI: 0

HDMI: 1

Led Header: Ano

PCI Express x1: 0

USB C: 1

LAN: 1Gbit/s

Aktuální cena produktu je2857Kč s dph

Kód produktu	380620
Part number	A520M-ITX/AC
EAN produktu	4710483932045

Záruka:	36 Měsíc(ů)
Výrobce:	ASRock
Skladová dostupnost:	Na dotaz
